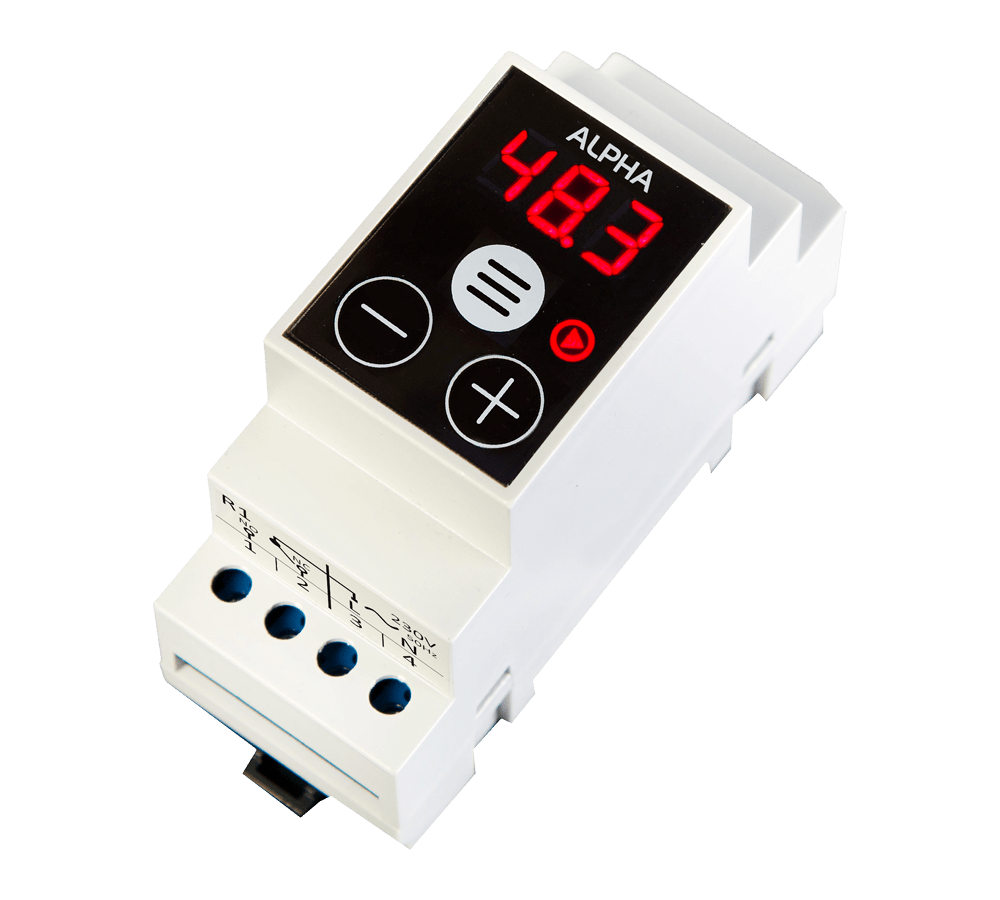

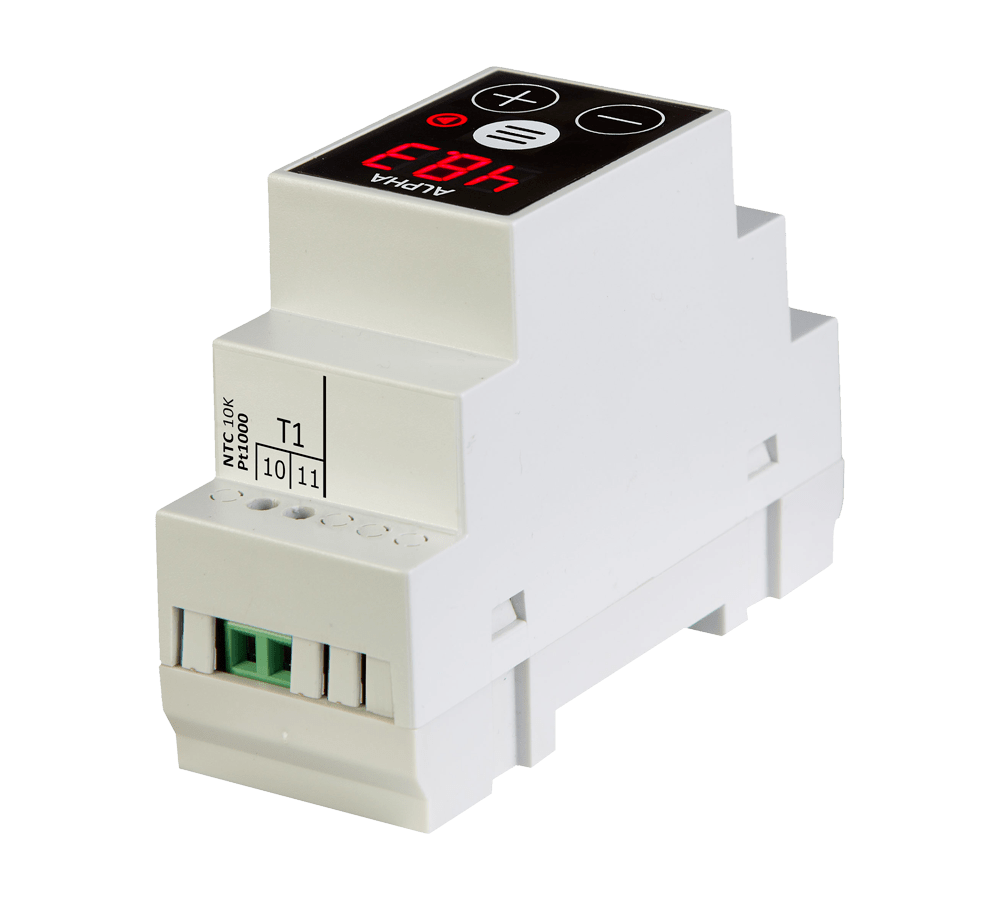

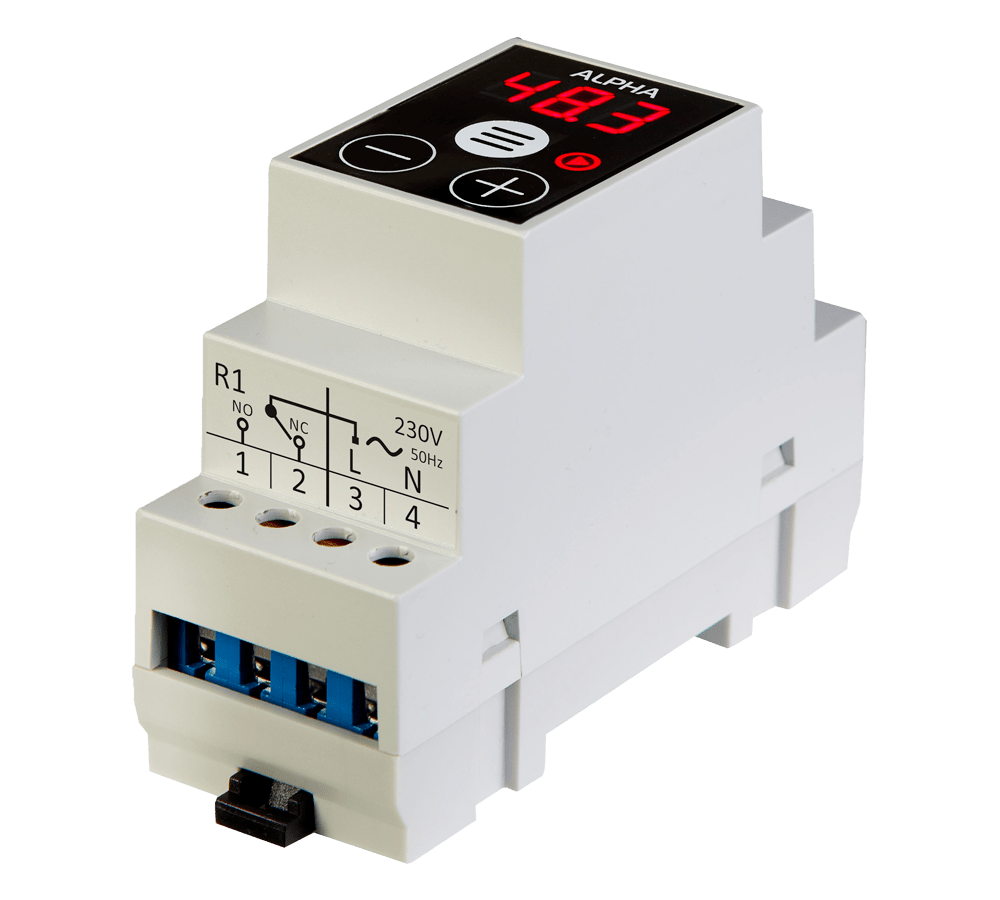

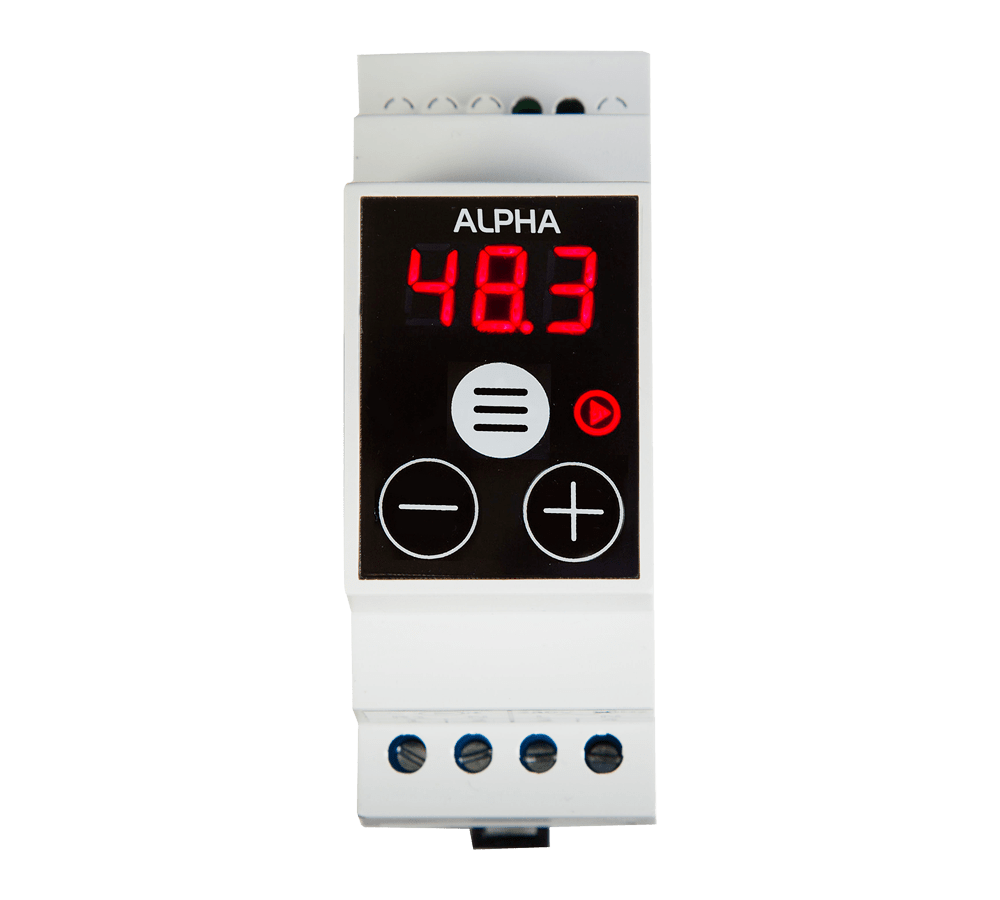

tSol Alpha

Programmable Thermostat

Programmable thermostat, having 1 input and 1 output, universal, suitable for every type of heating system.


Alpha
  • Alpha
  • Alpha
  • Alpha
  • Alpha
  • Description

    Alpha is a specialized thermostat which purpose is to maintain the set temperaure of the heated object. It can be used for both heating and cooling applications in wide temperature range. Besides adjusting the set temperature, the thermostat provides access to other parameters, making it flexible and easy to use in every heating system installation.

    Alpha monitors the temperaure of the heated object and according to the set temperature, it turns on or off the connected load, which heats or cools the controlled system.

    pdf Alpha Manual

  • Specification
    Thermostat Relay output 5 А / 1 KW, 250 VAC
    Thermal sensor NTC -40 ... 125 °C
    Thermal sensor Pt1000 -40 ... 200 °C
    Power Voltage 230 V, 50 Hz
    Maximum power consumption 1.5 VA
    Mounting DIN rail
    Weight 0.210 kg
    Dimensions 36 х 90 х 58 mm
    Ambient temperature 0 ... 40 °C

Products from the same category

  • Pic
    tSol

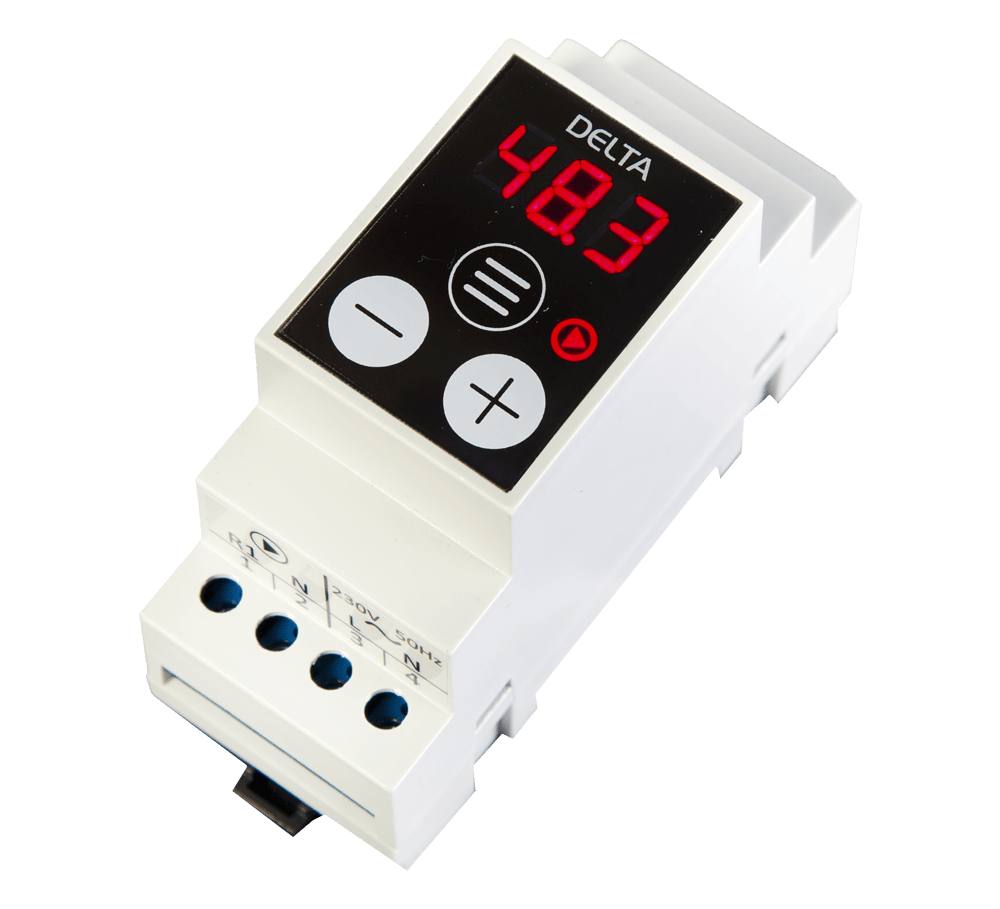

    Delta
