logoSineUPS

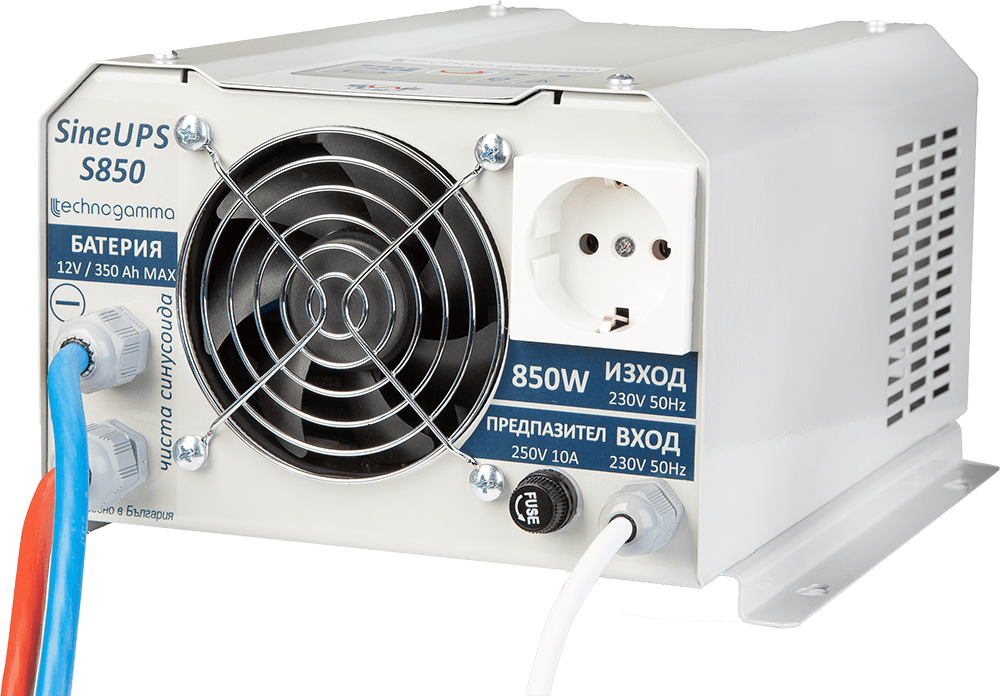

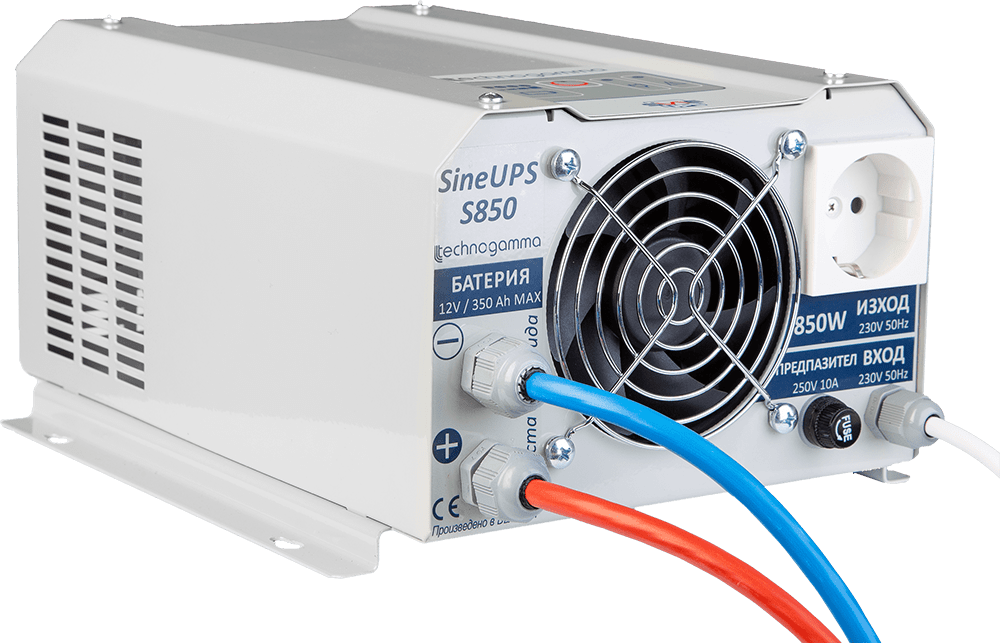

SineUPS S850

S850 model has external battery terminals and is suitable for loads up to 850 W.


S850
  • S850
  • S850
  • S850
  • S850
  • /S600
  • Description

    Pure Sinewave!

    The Uninterruptible Power Supply SineUPS guarantees continuous work of all the appliances connected. When a problem with the mains power supply is detected (power cut or instability), SineUPS generates a pure sinewave from the battery connected. The output voltage has the same form as the mains voltage, meaning that the loads connected work as efficiently as being powered from mains.

    When a stable mains voltage is present, the device always keeps the battery charged up so it will provide as much charge as possible in the time of need.

    The external battery terminals allow connecting a higher capacity battery which extends the work time in battery powered mode.

    pdf SineUPS Manual

    pdf SineUPS Flyer

  • Specification
    Input Voltage 220 VAC
    Frequency 50 Hz
    Voltage to switch to battery powered mode below 180 VAC
    over 260 VAC
    Protection Fuse, mounted on the housing
    Output Voltage 220 VAC ± 4%
    Frequency 50 Hz ± 1Hz
    Power 850 W
    Voltage form Pure sine wave
    Switching time < 5 ms
    Protection Automatic resettable protection from overload and short circuit
    Battery Type 12 V, lead-acid
    Capacity External, 60 - 350 Ah 1
    Protection Reverse polarity connection protection
    Weight 7.9 kg
    Dimensions 255 х 215 х 130 mm
    Ambient temperature 0 - 35 °C
    Relative humidity 0 - 95 %
    1. External battery is not part of the product.
